Outline

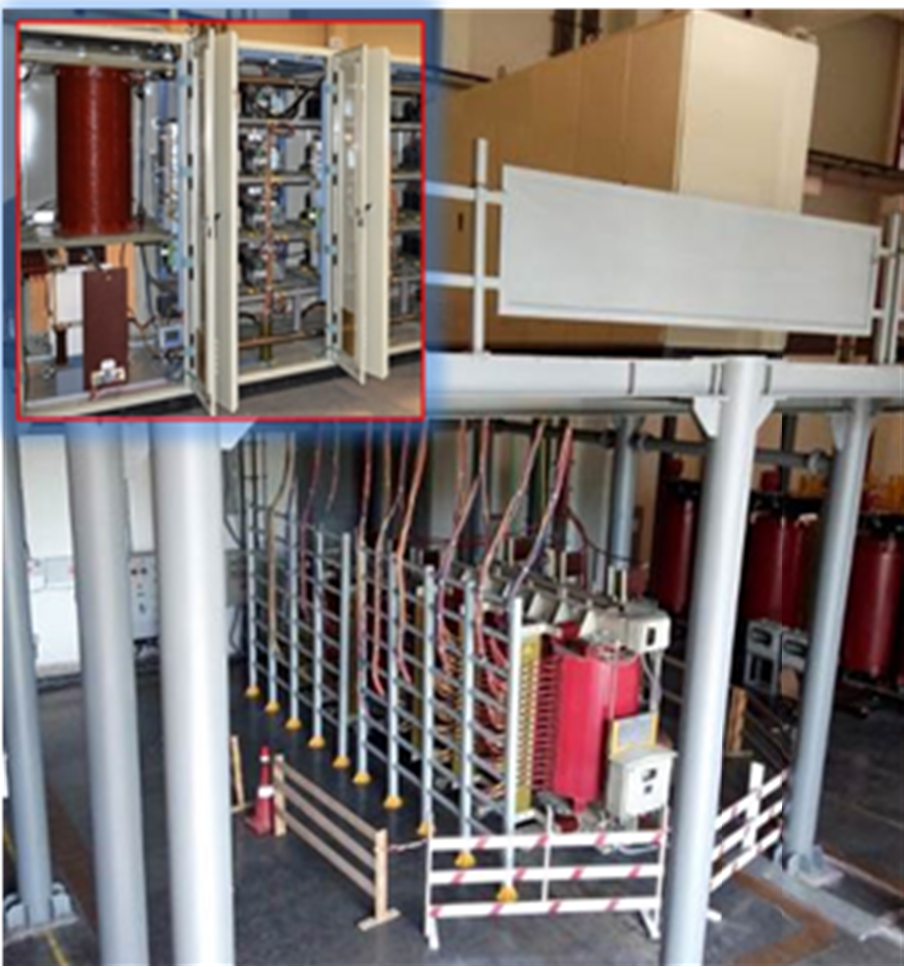

The High Voltage Power Supplies (HVPS) are used for Particle Accelerators, Broadcast Transmitters as well as Radio Frequency Amplifiers/Oscillators , covers the potential use in physics experiments , Industrial and medical applications. A novel scheme of dual output with single HVPS was explored, developed and implemented to design-validate 35-65 MHZ, 1.5MW Radio Frequency amplifier system for ITER. It offers an intrinsic advantage of two HVPS units (18kV & 27kV) in a single system at 3 MW.
Specification and Achievement
| Parameter | Value | |
|---|---|---|
| Input | Input voltage : 22 kV + 10 % , 50 Hz | |
| HVPS for HPA-2 | 14-18 kV , 250 kW | |
| HVPS for HPA-3 | 16-27 kV, 105 – 155 A ,2800 kW | |
| Accuracy | + 1 % of maximum value of particular stage | |
| Resolution | 100 Volts | |
| Ripple | + 1 % of maximum value of particular stage | |
| Rise Time | 100µs to 5ms (Programmable) | |
| Energy dumped into a load < 10J. | ||
Testing / Validation
The developed HVPS was used to validate 1.5MW , 35-65MHz RF Amplifier system with a cumulative operation of more than 1000 hours , continuous operation of 7200seconds.
Present status
Commercial scale model : Technology was transferred to M/s. Electronics Corporation of India Ltd.
